Why this problem matters right now

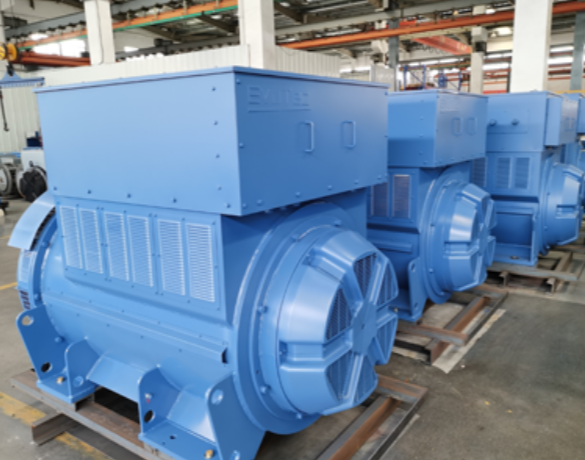

Stator insulation breakdown and excessive core loss are the two things that quietly wreck alternator uptime in industrial sites — and they do it fast. Out in the Pilbara mines of Western Australia, a single alternator fault can hold up a processing line for days and wipe out productivity; operators there increasingly opt for tailored gear rather than off-the-shelf spares. If you’re spec’ing an OEM alternator or switching to a custom high output alternator, the design choices you make now determine whether that unit ages quietly or fails spectacularly. Key culprits are core loss from high flux density and eddy currents, and the slow creep of thermal ageing in stator insulation.
Pinpoint failures before they escalate
Start with diagnostics that give real data: partial discharge mapping, infrared thermography, and dielectric strength tests on winding insulation. Partial discharge readings and trends tell you whether voids or tracking exist in the winding resin. Infrared scans highlight hot spots tied to poor cooling ducts or misalignment. Keep the test intervals steady and record baselines — trending matters more than a single reading. Regular checks cut surprises and keep thermal stress from turning into insulation breakdown.
Design fixes that actually reduce core loss
Core loss is largely about material and geometry. Use thinner laminations and higher-grade electrical steel to reduce hysteresis and eddy currents; optimise lamination stacking and clamp pressure to avoid flux leakage. Lower flux density at rated load helps too — design for a slightly reduced peak flux rather than chasing theoretical maximum output. That trade-off keeps iron losses down and improves efficiency under real operating conditions. Also remember cooling: adequate ventilation and targeted cooling ducts remove heat before it accelerates thermal ageing of the stator insulation.
Material choices and winding practice
Resin systems, impregnation methods, and conductor insulation all affect long-term dielectric strength. Choose winding resin chemistry that resists moisture uptake and remains flexible under cyclic load; that reduces microscopic cracks where partial discharge starts. Pay attention to slot-fill techniques and conductor lay to minimise hotspots. Good vibration damping and secure clamping prevent mechanical fretting that leads to insulation breaches — simple, but often missed in hurry-up installs.
Operational habits that prolong life
Maintenance beats replacement. Implement staged load ramps to avoid sudden thermal shocks, and monitor for transient overvoltages that spike partial discharge levels. Keep electrical connections torqued to spec and align shafts precisely to limit mechanical stress. Train onsite crews to spot the quiet early signs: small PD increases, a fractionally higher temperature rise, or odd vibration patterns. — These tiny blips almost always precede bigger failures.
Common mistakes to avoid
Don’t over-insulate without thinking about cooling; thicker insulation can trap heat and accelerate breakdown. Avoid accepting alternator designs that push flux density to its limits for short-term gains. Reject one-size-fits-all replacements that ignore site conditions — a heavy-duty start-stop duty in a mining haulage fleet needs different coil insulation and cooling than a continuous generator in a plant room. Poorly matched spares are the silent cause of repeated failures.
Choosing the right partner and product
Compare suppliers on measurable factors: validated core loss data at operating flux density, long-term partial discharge trends under site conditions, and supplier records from similar environments such as Australian mines or remote power plants. Ask for thermal rise test curves and proof of winding dielectric testing over time. Vendors who can customise lamination stacks, adjust winding resin systems and tune cooling arrangements for site-specific duty cycles win long-term value — and that’s where a tailored unit beats an off-the-shelf swap every time.
Three golden rules for evaluation
1) Monitor temperature rise at rated load and accept only designs whose thermal curve leaves headroom for ambient spikes. 2) Insist on partial discharge measurements at operating voltage; low and stable PD is non-negotiable. 3) Require published core loss figures in W/kg at the intended flux density, not just headline efficiency numbers — that reveals true iron losses under your load profile.
When the job is to stop insulation breakdown and shave core loss, pragmatic design, targeted testing and sensible materials win. EvoTec helps translate those lessons into tailored alternator builds that last longer and run cleaner — good gear matched to real sites. –
